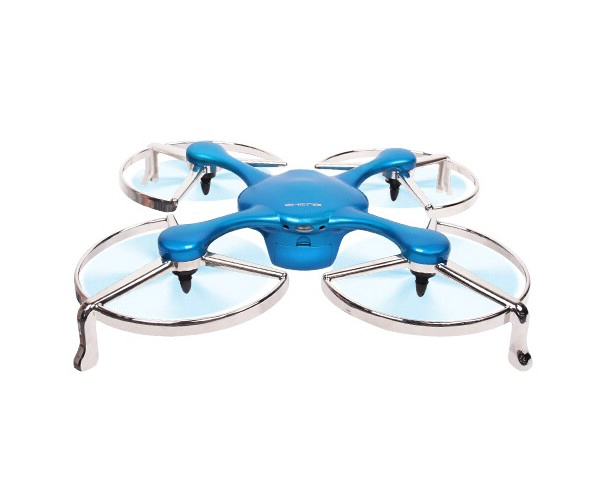

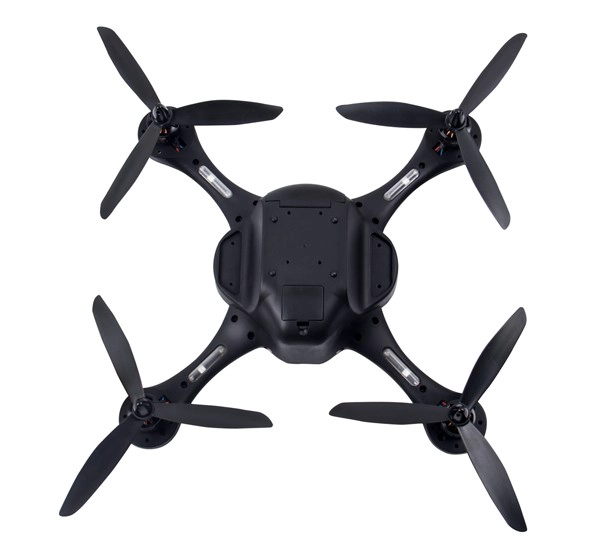

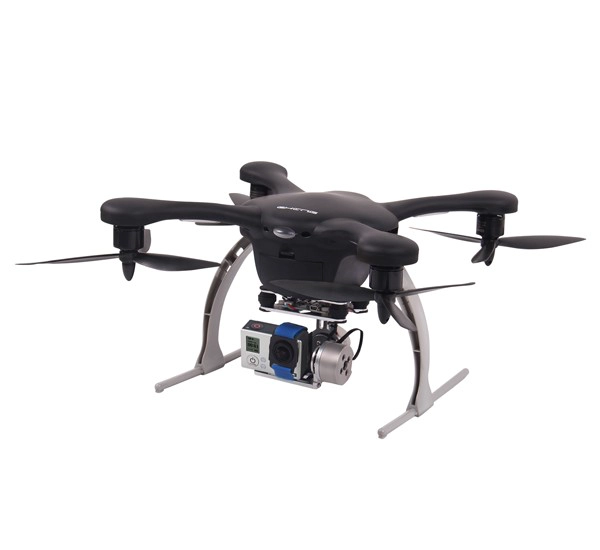

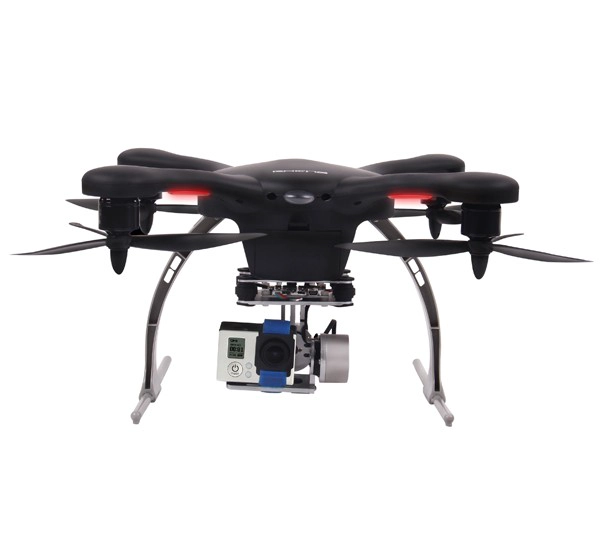

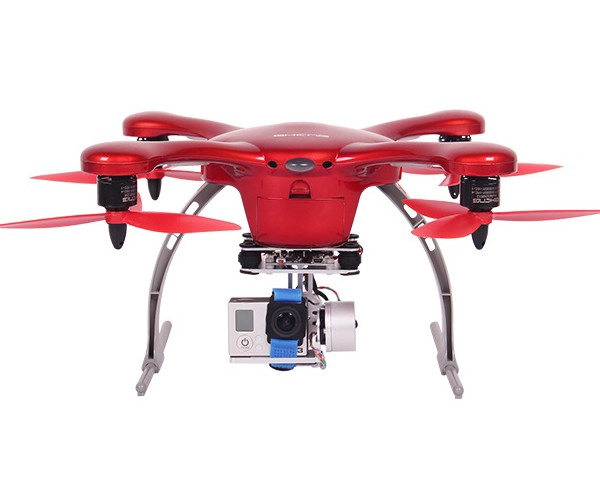

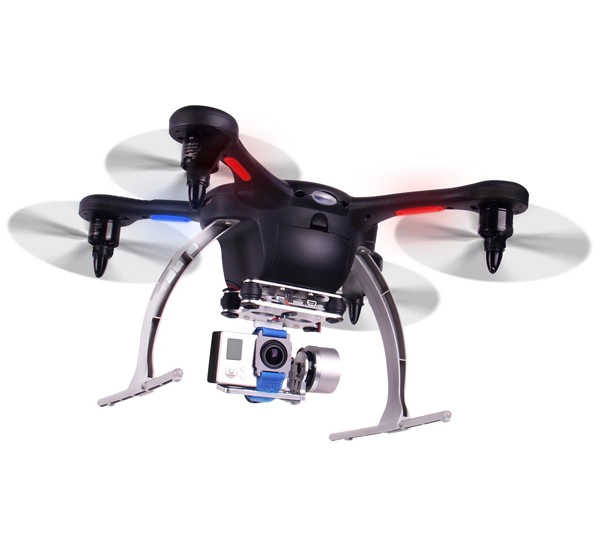

Ghost drone with smartphone Control flying contain Gimble and Camera REH30G-C

  • Point-to-point operation on map in Smartphone APP
  • One-tap routing. Real-time information includes flight distance, flight height, battery can be showed in APP
  • One tap takeoff, return and land in App
  • Communication distance:1000m
  • Audio remind when battery is low
  • Auto-return once lost communication
  • Auto-follow mode






Function

1、supports multi-rotor:Three axis, four axis, six axis, eight axis.

2、product size:36×36×10CM

3、the proposed remote control:PCM or 2.4GHz; at least 6CH, support and protection.

4、Battery:5400mah lipo battery

5、Maximum flight time:26Min

6、Weight:650g (without battery)

7、Motor:EH9812 and EH9812R reversible motor

8、flying accuracy:± 0.5 m

9、maximum rotation angle:360 °

10、operating temperature:-15 ° C~ + 70 °C

11、Maximum power 5W (1A @ 5V)

12、Rated Power:1.5W (300mah @ 5V)

13Speed:6-15m / sec.

14Control Distance:1KM;Real-time video transmission distance of 1-2 KM, customer need to purchase additional equipment.

15Transmitter:433MHZ80MW standard Bluetooth communication devices.

16、 with cameras, camera with 16G memory card, without real-time transmission function.






Parameters

Diagonal Distance: 360mm

Drone Height:100mm

Height with Landing gears190mm

Drone Weight650g

Weight with Gimbal and Camera1000g

Maximum Flight Distance1000m

Maximum Flight Height1000m

Hover Precision:±2minfluenced by flying environment

Wind Resistance<10.7m/s

Operating Environment Temperature-15°-  +70°

Flight Control Maximum Power Rate5W1A@5V

Flight Control Rated Power 1.5W300ma@5A

Flight Time18-23min

Batteryxt60 connector 3-cell 11.1v 5.4Ah Lipo

GPSUblox 6 parallely compacted compass

Communication Method433mhz 80mw standard 2.4G channel communicator

Camera1200pixel 1080P HD cameraGopro compactible

Flight ControlEhang Flight Control System

Gimbal2D Brushless Gimbaloperated with smartphone APP



Components

Ghost Drone

Gimbal

Camera

Battery

433mhz 80mw communication box
