Ghost drone with smartphone Control flying REH30G-N

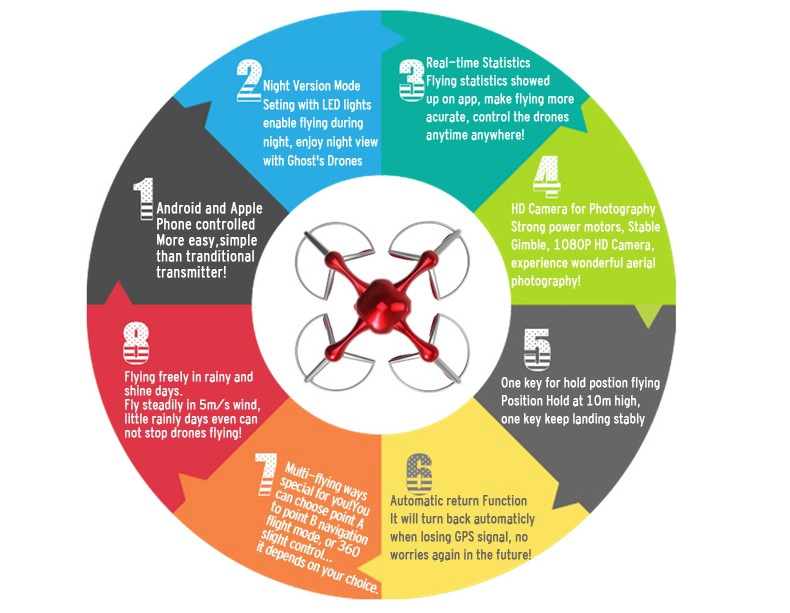

  • Point-to-point operation on map in Smartphone APP
  • One-tap routing. Real-time information includes flight distance, flight height, battery can be showed in APP
  • One tap takeoff, return and land in App
  • Communication distance:1000m
  • Audio remind when battery is low
  • Auto-return once lost communication
  • Auto-follow mode





Function

1)support multi-rotor:Three axis, four axis, six axis, eight axis

2)Product size:36×36×10CM

3) the proposed remote control:PCM or 2.4GHz;at least six channels, support and protection.

4)Battery:5400mah lipo battery

5)the maximum flight time:26M

6)Weight:650g (without battery)

7)Motor:EH9812 and EH9812R reversible motor

8)flying accuracy:± 0.5m

9)maximum rotation angle:360 °

10)operating temperature: -15 ° C~ + 70 °

11)Maximum power 5W (1A @ 5V)

12)Rated Power:1.5W (300mah @ 5V)

13)Speed6-15m / sec.

14)Control Distance:1KM

15)Transmitter:433MHZ80MW standard Bluetooth communication devices.






Parameters
Diagonal Distance:360mm
Drone Height:100mm
Height with Landing gears:190mm
Drone Weight:650g
Weight with Gimbal and Camera:1000g
Maximum Flight Distance:1000m
Maximum Flight Height:1000m
Hover Precision:±2m(influenced by flying environment)
Wind Resistance:<10.7m/s
Operating Environment Temperature:-15°-  +70°
Flight Control Maximum Power Rate:5W(1A@5V)
Flight Control Rated Power:1.5W(300ma@5A)
Flight Time:18-23min
Battery:xt60 connector 3-cell 11.1v 5.4Ah Lipo
GPS:Ublox 6 parallely compacted compass
Communication Method:433mhz 80mw standard 2.4G channel communicator
Camera:1200pixel 1080P HD camera(Gopro compactible)
Flight Control:Ehang Flight Control System
Gimbal:2D Brushless Gimbal(operated with smartphone APP)

Components
1×Ghost Drone
1×Gimbal
1×Camera
1×Battery
1×433mhz 80mw communication box
